| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 55.00 + 0.102/ + 0.121 |
| INNER DIAMETER : | 45.085 + 0.025 mm |
| TOTAL LENGTH : | 54.8 mm |
| GROOVING WIDTH : | 5 mm |
| GROOVING DEPTH : | 1.5 mm |
| SURFACE HARDNESS : | 55 - 60 HRC |
| CASE DEEPTH : | 1.8 - 2.00 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| COUNTER DIAMETER : | 82.00 mm |
| OUTER DIAMETER : | 50.00 + 0.102/ + 0.121 |
| INNER DIAMETER : | 40. + 075 + 0.025 mm |
| TOTAL LENGTH : | 47.5 mm |
| GROOVING WIDTH : | 3 mm |
| GROOVING DEPTH : | 1.2 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 50.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 40. + 070 + 0.095 mm |
| TOTAL LENGTH : | 5 mm |
| GROOVING WIDTH : | 3 mm |
| GROOVING DEPTH : | 1.5 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| HRC CASE DEEPTH : | 1.8 - 2.00 mm |

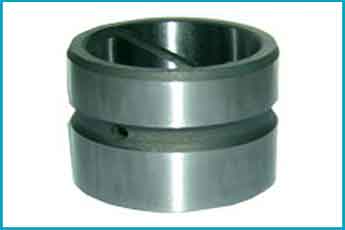

| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 55.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 45 + 085 + 0.025 mm |
| TOTAL LENGTH : | 54.8 mm |
| DRILL SIZE : | 5 mm |
| CENTER DISTANCE : | 29.5 |
| GROOVING WIDTH : | 5 mm |
| GROOVING DEPTH : | 1.5 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 60.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 50. + 090 + 0.023 mm |
| TOTAL LENGTH : | 35.8 mm |
| GROOVING WIDTH : | 5 mm |
| GROOVING DEPTH : | 1.5 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| COUNTER DIAMETER : | 84.00 mm |
| OUTER DIAMETER : | 55.00 + 0.102/ + 0.121 |
| INNER DIAMETER : | 45. + 090 + 0.023 mm |
| TOTAL LENGTH : | 47.5 mm |
| GROOVING WIDTH : | 3 mm |
| GROOVING DEPTH : | 1.2 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 55.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 45 + 105 + 0.121 mm |
| TOTAL LENGTH : | 36 mm |
| GROOVING WIDTH : | 3 mm |
| GROOVING DEPTH : | 1. 2 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 75.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 60 + 0.09 + 0.112 mm |
| TOTAL LENGTH : | 44.8 mm |
| GROOVING WIDTH : | 5 mm |
| GROOVING DEPTH : | 1.5 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL: | En 8D |
| OUTER DIAMETER : | 50.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 40 + 0.09 + 0.023 mm |
| TOTAL LENGTH : | 39.8 mm |
| GROOVING WIDTH : | 5 mm |
| GROOVING DEPTH : | 1.5 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL: | En 8D |
| COUNTER DIAMETER : | 72.00 mm |
| OUTER DIAMETER : | 45.00 + 0.102/ + 0.121 |
| INNER DIAMETER : | 35. + 090 + 0.023 mm |
| TOTAL LENGTH : | 39 mm |
| GROOVING WIDTH : | 3 mm |
| GROOVING DEPTH : | 1.2 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL : | En 8D |
| OUTER DIAMETER : | 45.00 mm + 0.102/ + 0.121 |
| INNER DIAMETER : | 35 + 0.09 + 0.023 mm |
| TOTAL LENGTH : | 29.8 mm |
| GROOVING WIDTH : | 3 mm |
| GROOVING DEPTH : | 1.2 mm |
| SURFACE HARDNESS : | 52 - 60 HRC |
| CASE DEEPTH : | 1 - 1.8 45 HRC |
| Specification | Description |
|---|---|
| RAW MATERIAL: | 16 MnCr 5 |
| OUTER DIAMETER : | 73.96 +/- 0.02 mm |
| INNER DIAMETER : | 60.18 +/- 0.02 mm |
| TOTAL LENGTH : | 84.3 +/- 0.2 mm |
| GROOVING WIDTH : | R 6 |
| DRILL SIZE : | 5 mm |
| SURFACE HARDNESS : | 55 - 62 HRC |
| CASE DEEPTH : | 0.6 to 0.7 |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | 16 MnCr 5 |
| OUTER DIAMETER : | 54.96 +/- 0.02 |
| INNER DIAMETER : | 45.25 +/- 0.02 mm |
| TOTAL LENGTH : | 104.5 +/- 0.2 mm |
| GROOVING WIDTH : | R 6 |
| DRILL SIZE : | 5 mm |
| SURFACE HARDNESS : | 55 - 60 HRC |
| CASE DEEPTH : | 0.8 to 1 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | 16 MnCr 5 |
| OUTER DIAMETER : | 54.96 +/- 0.02 |
| INNER DIAMETER : | 51.17+/- 0.02 mm |
| TOTAL LENGTH : | 69.8 +/- 0.2 mm |
| GROOVING WIDTH : | R 6 |
| DRILL SIZE : | 5 mm |
| SURFACE HARDNESS : | 55 - 60 HRC |
| CASE DEEPTH : | 0.5 to 0.6 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | 16 MnCr 5 |
| OUTER DIAMETER : | 85.98 +/- 0.02 |
| INNER DIAMETER : | 70.21+/- 0.02 mm |
| TOTAL LENGTH : | 50 +/- 0.2 mm |
| SURFACE HARDNESS : | 55 - 62 HRC |
| CASE DEEPTH : | 0.8 to 1 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | M.S( MIN HIGH) |
| OUTER DIAMETER : | 80.15 +/- 0.02 |
| INNER DIAMETER : | 70.37 +/- 0.02 mm |
| TOTAL LENGTH : | 31.6 +/- 0.2 mm |
| SURFACE HARDNESS : | 55 - 62 HRC |
| CASE DEEPTH : | 0.5 to 0.6 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | 16 MnCr 5 |
| OUTER DIAMETER : | 69.98 +/- 0.02 |
| INNER DIAMETER : | 57.34+/- 0.02 mm |
| TOTAL LENGTH : | 30 +/- 0.2 mm |
| SURFACE HARDNESS : | 55 - 62 HRC |
| CASE DEEPTH : | 0.7 to 1 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | 16 MnCr 5 |
| OUTER DIAMETER : | 57.13 +/- 0.02 |
| INNER DIAMETER : | 44.57+/- 0.02 mm |
| TOTAL LENGTH : | 94+/- 0.2 mm |
| SURFACE HARDNESS : | 55 - 62 HRC |
| CASE DEEPTH : | 0.7 to 1 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
| Specification | Description |
|---|---|
| RAW MATERIAL : | 16 MnCr 5 |
| OUTER DIAMETER : | 57.13 +/- 0.02 |
| INNER DIAMETER : | 44.68+/- 0.02 mm |
| TOTAL LENGTH : | 29+/- 0.1 mm |
| SURFACE HARDNESS : | 55 - 62 HRC |
| CASE DEEPTH : | 0.8 to 1.5 mm |
| SURFACE FINISH : | Ra 0.8 MICRO MM |
